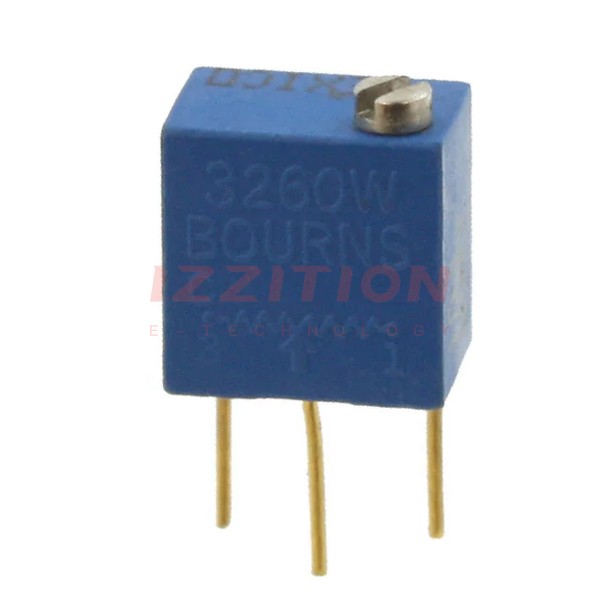

| Part Number | 3260W-1-102 | 3260W-1-502 | 3262W-1-102 | 3260W-1-103 | 3260W-1-202 | 3260H-1-102 | 3260W-1-100 | 3260W-1-101 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 5 kOhms | 1 kOhms | 10 kOhms | 2 kOhms | 1 kOhms | 10 Ohms | 100 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Temperature Coefficient | ±70ppm/°C | ±70ppm/°C | ±100ppm/°C | ±70ppm/°C | ±70ppm/°C | ±70ppm/°C | ±70ppm/°C | ±70ppm/°C |
| Number of Turns | 11 | 11 | 12 | 11 | 11 | 11 | 11 | 11 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Wirewound | Wirewound | Cermet | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
