Please send RFQ , we will respond immediately.

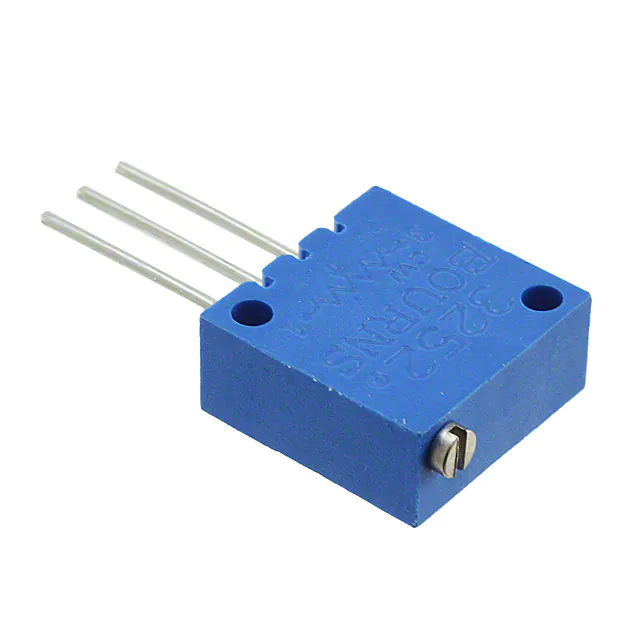

| Part Number | 3252W-1-100 | 3252W-1-101 | 3252W-1-102 | 3252W-1-103 | 3252W-1-104 | 3252W-1-105 | 3252W-1-200 | 3252W-1-500 | 3252X-1-100 | 3250W-1-100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms | 1 MOhms | 20 Ohms | 50 Ohms | 10 Ohms | 10 Ohms |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 1W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±50ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Wirewound |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
