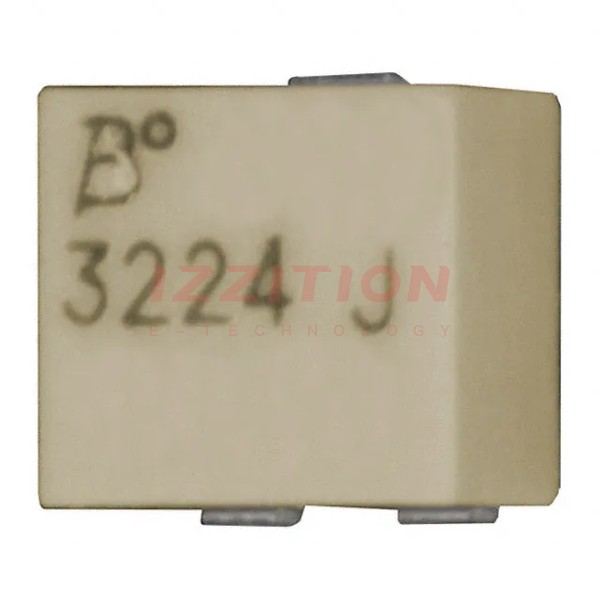

| Part Number | 3224J-1-504E | 3224W-1-504E | 3224X-1-504E | 3224J-2-504E | 3223J-1-504E | 3224G-1-504E | 3224J-1-104E | 3224J-1-204E | 3224J-1-500E | 3224J-1-501E | 3224J-1-502E | 3224J-1-503E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 500 kOhms | 500 kOhms | 500 kOhms | 500 kOhms | 500 kOhms | 500 kOhms | 100 kOhms | 200 kOhms | 50 Ohms | 500 Ohms | 5 kOhms | 50 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.125W, 1/8W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 12 | 12 | 12 | 12 | 11 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Adjustment Type | Side Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | Gull Wing | J Lead | J Lead | Gull Wing | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) |
