Please send RFQ , we will respond immediately.

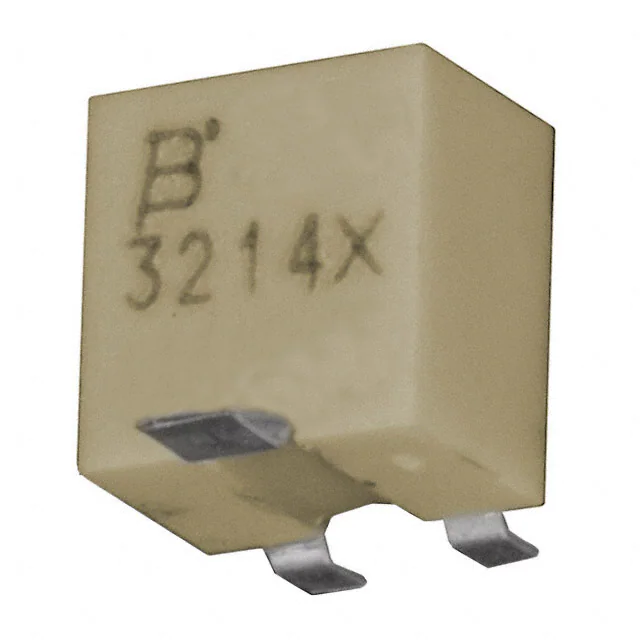

| Part Number | 3214X-1-503E | 3214X-1-504E | 3214X-2-503E | 3214G-1-503E | 3214J-1-503E | 3214W-1-503E | 3214X-1-103E | 3214X-1-203E | 3214X-1-500E | 3214X-1-501E | 3214X-1-502E |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 kOhms | 500 kOhms | 50 kOhms | 50 kOhms | 50 kOhms | 50 kOhms | 10 kOhms | 20 kOhms | 50 Ohms | 500 Ohms | 5 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | Gull Wing | J Lead | J Lead | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
