Please send RFQ , we will respond immediately.

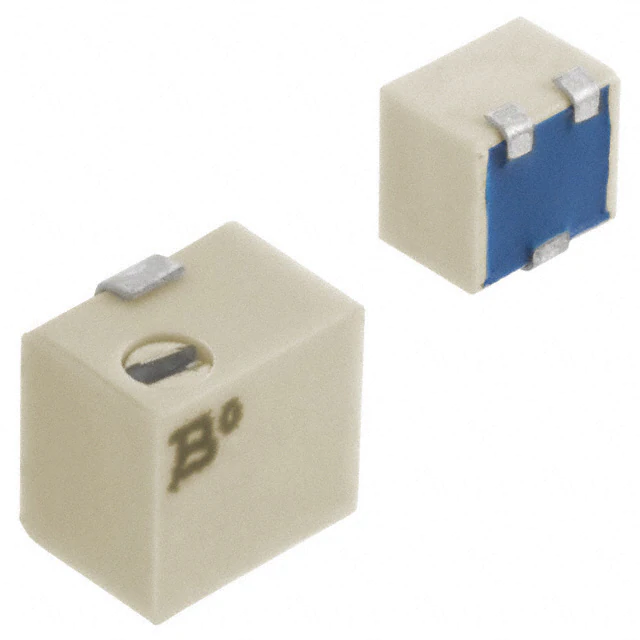

| Part Number | 3214J-1-205E | 3214W-1-205E | 3214X-1-205E | 3214G-1-205E | 3214J-1-105E | 3214J-1-200E | 3214J-1-201E | 3214J-1-202E | 3214J-1-203E | 3214J-1-204E |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2 MOhms | 2 MOhms | 2 MOhms | 2 MOhms | 1 MOhms | 20 Ohms | 200 Ohms | 2 kOhms | 20 kOhms | 200 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Adjustment Type | Side Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | Gull Wing | Gull Wing | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
