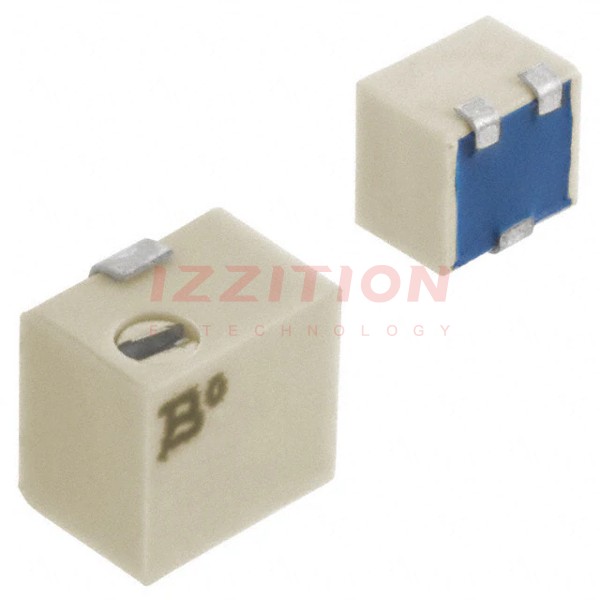

| Part Number | 3214J-1-100E | 3214J-1-103E | 3214J-1-102E | 3214J-1-104E | 3214J-1-200E | 3214W-1-100E | 3214J-1-101E | 3214J-1-500E | 3214J-1-105E | 3214X-1-100E | 3214G-1-100E |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 10 kOhms | 1 kOhms | 100 kOhms | 20 Ohms | 10 Ohms | 100 Ohms | 50 Ohms | 1 MOhms | 10 Ohms | 10 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | Gull Wing | Gull Wing |
| Size / Dimension | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
