Please send RFQ , we will respond immediately.

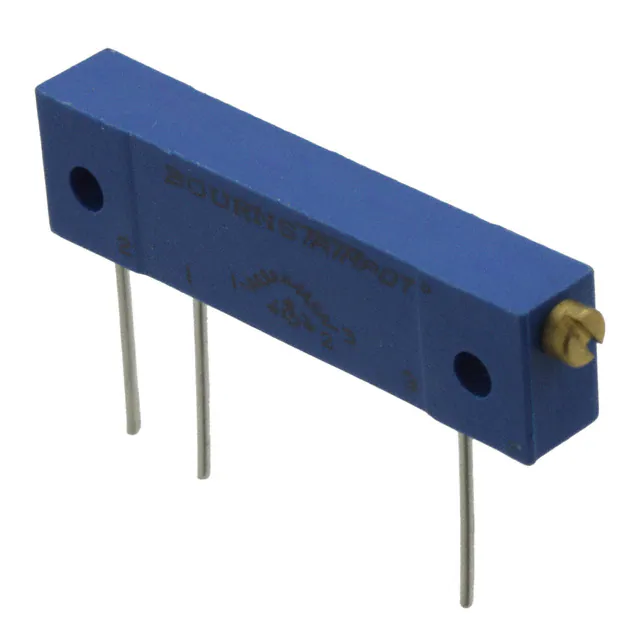

| Part Number | 3059P-1-501LF | 3059Y-1-501LF | 3059P-1-502LF | 3059P-1-503LF | 3059P-1-505LF | 3059P-1-504LF | 3059P-1-501MLF | 3059L-1-501LF | 3059P-1-101LF | 3059P-1-201LF | 3059P-1-500LF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 500 Ohms | 500 Ohms | 5 kOhms | 50 kOhms | 5 mOhms | 500 kOhms | 500 Ohms | 500 Ohms | 100 Ohms | 200 Ohms | 50 Ohms |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Panel Mount, Through Hole | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | Wire Leads | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
