Please send RFQ , we will respond immediately.

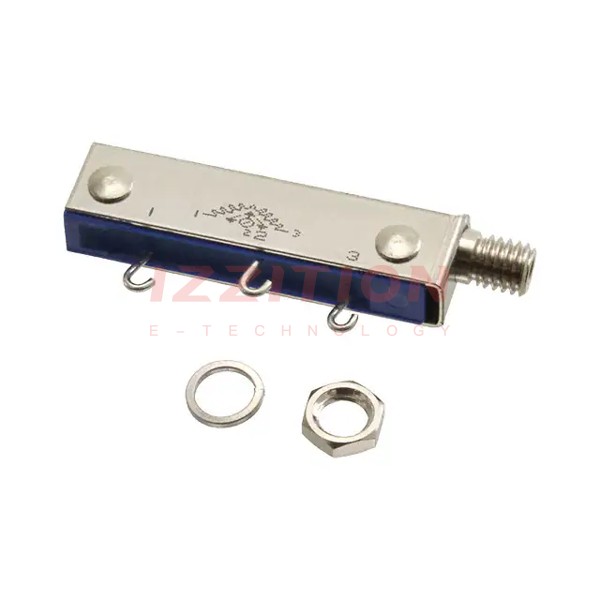

| Part Number | 3059J-1-303MLF | 3059J-1-503MLF | 3059J-1-103MLF | 3059J-1-203MLF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 30 kOhms | 50 kOhms | 10 kOhms | 20 kOhms |
| Power (Watts) | 1W | 1W | 1W | 1W |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 22 | 22 | 22 | 22 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Termination Style | Solder Hook | Solder Hook | Solder Hook | Solder Hook |
| Size / Dimension | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
