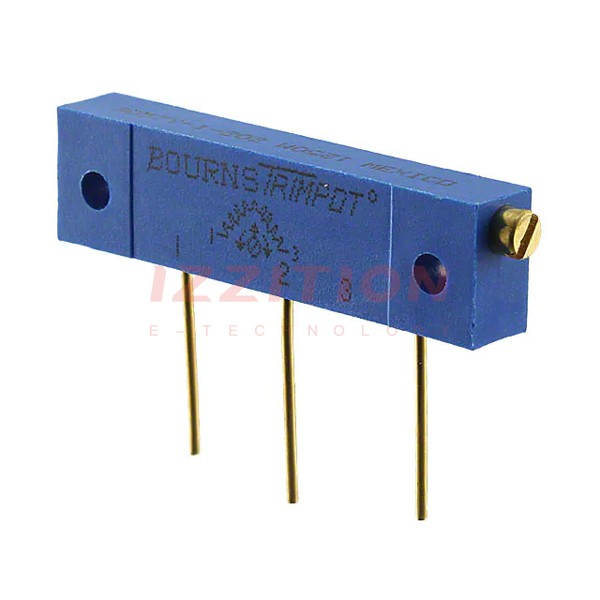

| Part Number | 3057Y-1-251 | 3057Y-1-252 | 3057Y-1-253 | 3057Y-1-351 | 3057Y-1-201 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 250 Ohms | 2.5 kOhms | 25 kOhms | 350 Ohms | 200 Ohms |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Turns | 22 | 22 | 22 | 22 | 22 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
