Please send RFQ , we will respond immediately.

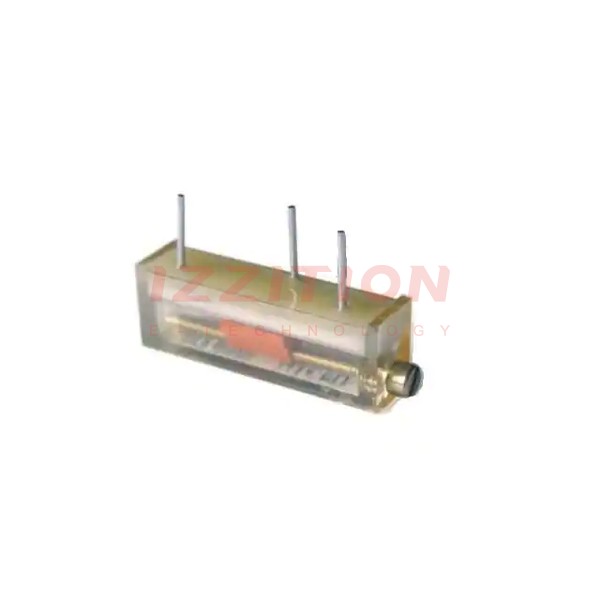

| Part Number | 3006P-7-203LF | 3006P-7-503LF | 3006P-7-204LF | 3006P-1-203LF | 3006P-7-103LF | 3006P-7-201LF | 3006P-7-202LF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 kOhms | 50 kOhms | 200 kOhms | 20 kOhms | 10 kOhms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
