3005P-1-502Z
  • Share:

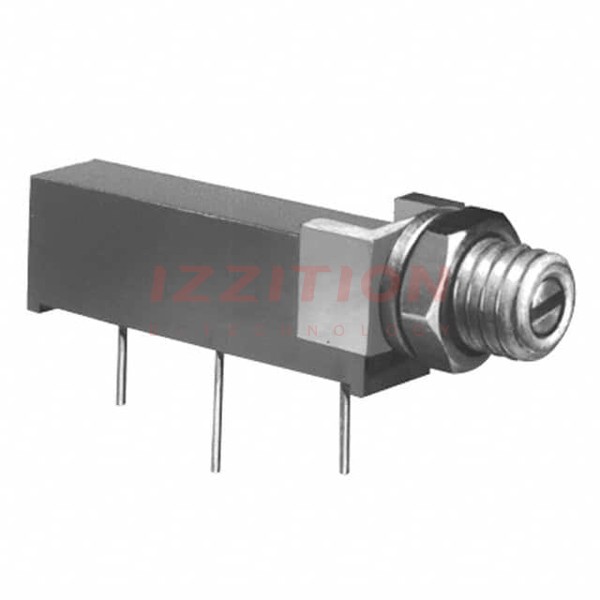

Bourns Inc. 3005P-1-502Z

Manufacturer No:
3005P-1-502Z
Manufacturer:
Bourns Inc.
Package:
Tube
Datasheet:
3005P-1-502Z Datasheet
ECAD Model:
-
Description:
TRIMMER 5K OHM 1W PC PIN SIDE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:5 kOhms
Power (Watts):1W
Tolerance:±10%
Temperature Coefficient:±50ppm/°C
Number of Turns:20
Adjustment Type:Side Adjustment
Resistive Material:Wirewound
Mounting Type:Panel Mount, Through Hole
Termination Style:PC Pins
Size / Dimension:Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm)
0 Remaining View Similar

In Stock

-
492

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3005P-1-502Z 3006P-1-502Z   3005P-1-202Z   3005P-1-502
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Resistance 5 kOhms 5 kOhms 2 kOhms 5 kOhms
Power (Watts) 1W 0.75W, 3/4W 1W 1W
Tolerance ±10% ±10% ±10% ±10%
Temperature Coefficient ±50ppm/°C ±100ppm/°C ±50ppm/°C ±50ppm/°C
Number of Turns 20 15 20 20
Adjustment Type Side Adjustment Side Adjustment Side Adjustment Side Adjustment
Resistive Material Wirewound Cermet Wirewound Wirewound
Mounting Type Panel Mount, Through Hole Panel Mount, Through Hole Panel Mount, Through Hole Through Hole
Termination Style PC Pins PC Pins PC Pins PC Pins
Size / Dimension Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm)
