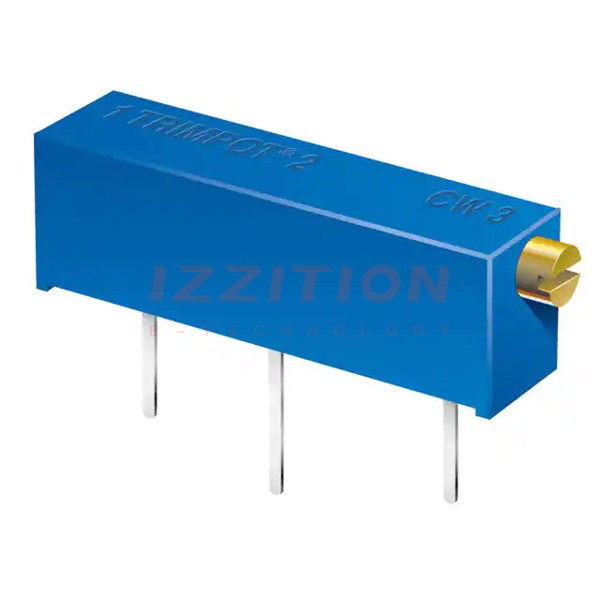

| Part Number | 3005P-1-102 | 3005P-1-502 | 3005P-1-103 | 3006P-1-102 | 3005P-1-202 | 3005P-1-100 | 3005P-1-101 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 5 kOhms | 10 kOhms | 1 kOhms | 2 kOhms | 10 Ohms | 100 Ohms |
| Power (Watts) | 1W | 1W | 1W | 0.75W, 3/4W | 1W | 1W | 1W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±100ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Turns | 20 | 20 | 20 | 15 | 20 | 20 | 20 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Wirewound | Wirewound | Wirewound | Cermet | Wirewound | Wirewound | Wirewound |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) | Rectangular - 0.310" x 0.160" Face (7.87mm x 4.06mm) |
