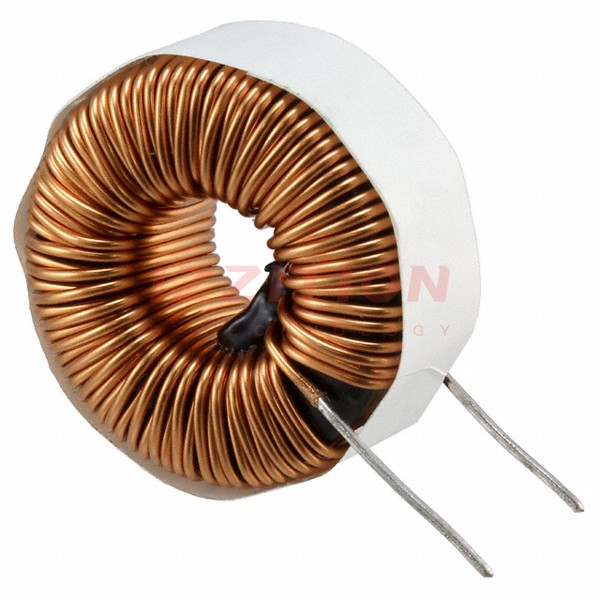

| Part Number | 2300LL-330-V-RC | 2300LL-390-V-RC | 2300LL-331-V-RC | 2300LL-330-H-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Sendust | Sendust | Sendust | Sendust |
| Inductance | 33 µH | 39 µH | 330 µH | 33 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 13 A | 12.2 A | 4.6 A | 13 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 10mOhm Max | 11mOhm Max | 79mOhm Max | 10mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | - | - | - | 0.650" (16.51mm) |
