Please send RFQ , we will respond immediately.

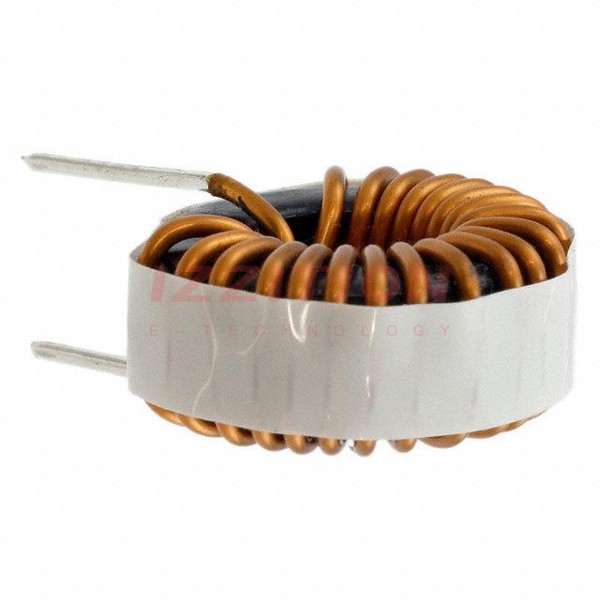

| Part Number | 2200LL-561-V-RC | 2200LL-560-V-RC | 2200LL-561-H-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal |
| Material - Core | Sendust | Sendust | Sendust |
| Inductance | 560 µH | 56 µH | 560 µH |
| Tolerance | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 3.5 A | 9.8 A | 3.5 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 101mOhm Max | 13mOhm Max | 101mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | 1.100" Dia (27.94mm) |
| Height - Seated (Max) | - | - | 0.550" (13.97mm) |
