2100LL-560-H-RC
  • Share:

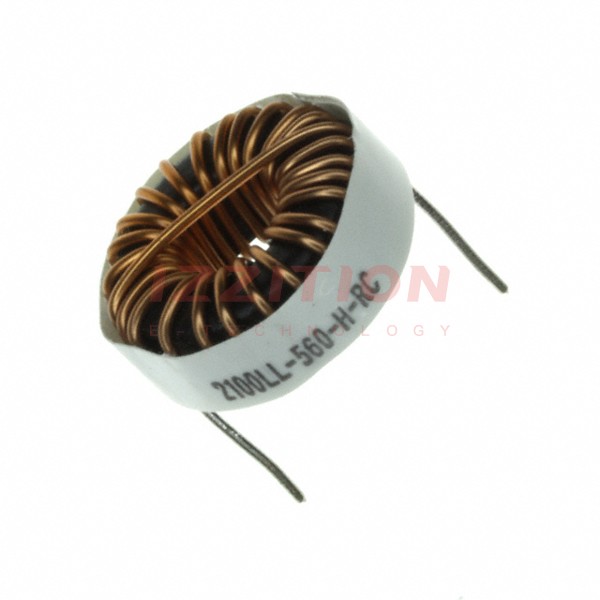

Bourns Inc. 2100LL-560-H-RC

Manufacturer No:
2100LL-560-H-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
2100LL-560-H-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 56UH 5A 26 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Toroidal
Material - Core:Sendust
Inductance:56 µH
Tolerance:±15%
Current Rating (Amps):5 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):26mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Horizontal (Open)
Supplier Device Package:-
Size / Dimension:0.860" Dia (21.84mm)
Height - Seated (Max):0.450" (11.43mm)
0 Remaining View Similar

In Stock

$3.98
47

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2100LL-560-H-RC 2100LL-561-H-RC   2100LL-560-V-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Type Toroidal Toroidal Toroidal
Material - Core Sendust Sendust Sendust
Inductance 56 µH 560 µH 56 µH
Tolerance ±15% ±15% ±15%
Current Rating (Amps) 5 A 2.2 A 5 A
Current - Saturation (Isat) - - -
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 26mOhm Max 134mOhm Max 26mOhm Max
Q @ Freq - - -
Frequency - Self Resonant - - -
Ratings - - -
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Inductance Frequency - Test 1 kHz 1 kHz 1 kHz
Features - - -
Mounting Type Through Hole Through Hole Through Hole
Package / Case Radial, Horizontal (Open) Radial, Horizontal (Open) Radial, Vertical (Open)
Supplier Device Package - - -
Size / Dimension 0.860" Dia (21.84mm) 0.860" Dia (21.84mm) 0.860" Dia x 0.450" W (21.84mm x 11.43mm)
Height - Seated (Max) 0.450" (11.43mm) 0.450" (11.43mm) -
