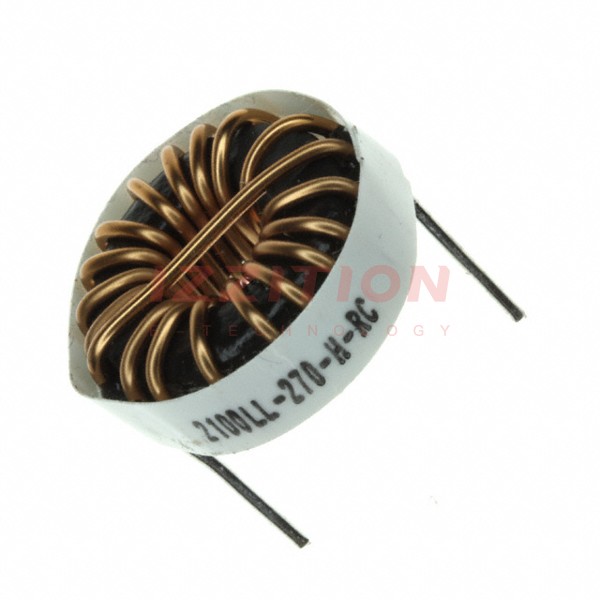

| Part Number | 2100LL-270-H-RC | 2100LL-271-H-RC | 2100LL-470-H-RC | 2100LL-270-V-RC | 2100LL-220-H-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Sendust | Sendust | Sendust | Sendust | Sendust |
| Inductance | 27 µH | 270 µH | 47 µH | 27 µH | 22 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 7.3 A | 2.7 A | 5.2 A | 7.3 A | 7.5 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 12mOhm Max | 93mOhm Max | 24mOhm Max | 12mOhm Max | 12mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | 0.860" Dia (21.84mm) |
| Height - Seated (Max) | 0.450" (11.43mm) | 0.450" (11.43mm) | 0.450" (11.43mm) | - | 0.450" (11.43mm) |
