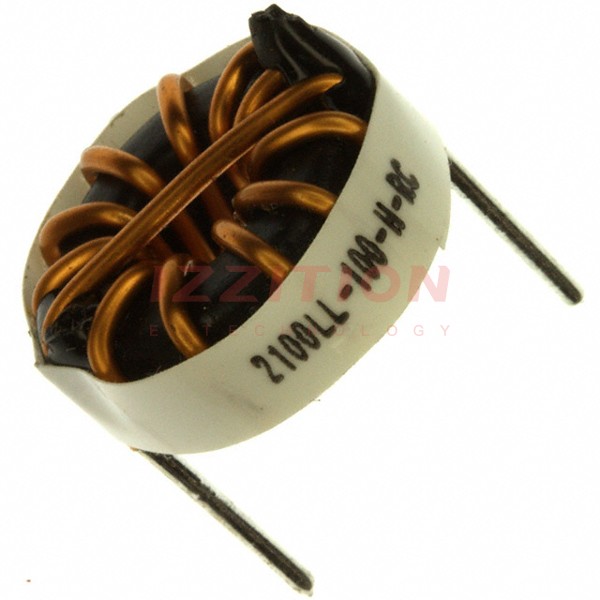

| Part Number | 2100LL-100-H-RC | 2100LL-101-H-RC | 2100LL-180-H-RC | 2100LL-120-H-RC | 2100LL-150-H-RC | 2100LL-100-V-RC | 2100LL-1R0-H-RC | 2100LL-102-H-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Sendust | Sendust | Sendust | Sendust | Sendust | Sendust | Sendust | Sendust |
| Inductance | 10 µH | 100 µH | 18 µH | 12 µH | 15 µH | 10 µH | 1 µH | 1 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±20% | ±15% |
| Current Rating (Amps) | 11.4 A | 4.3 A | 10.1 A | 10.9 A | 10.5 A | 11.4 A | 21.4 A | 1.5 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 5mOhm Max | 36mOhm Max | 7mOhm Max | 6mOhm Max | 6mOhm Max | 5mOhm Max | 2mOhm Max | 284mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | 0.860" Dia (21.84mm) | 0.860" Dia (21.84mm) |
| Height - Seated (Max) | 0.450" (11.43mm) | 0.450" (11.43mm) | 0.450" (11.43mm) | 0.450" (11.43mm) | 0.450" (11.43mm) | - | 0.450" (11.43mm) | 0.450" (11.43mm) |
