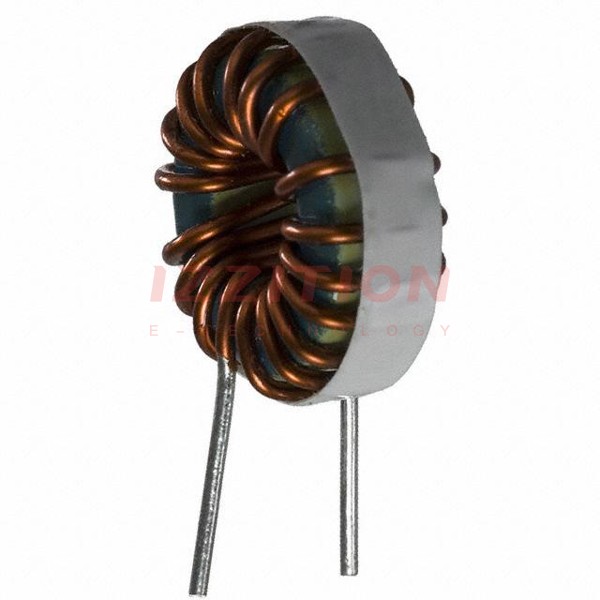

| Part Number | 2100HT-1R5-V | 2100HT-1R0-V | 2100HT-1R5-H |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal |
| Material - Core | - | - | - |
| Inductance | 1.5 µH | 1 µH | 1.5 µH |
| Tolerance | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 19.8 A | 21.7 A | 19.8 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3mOhm Max | 3mOhm Max | 3mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | 0.860" Dia (21.84mm) |
| Height - Seated (Max) | - | - | 0.450" (11.43mm) |
