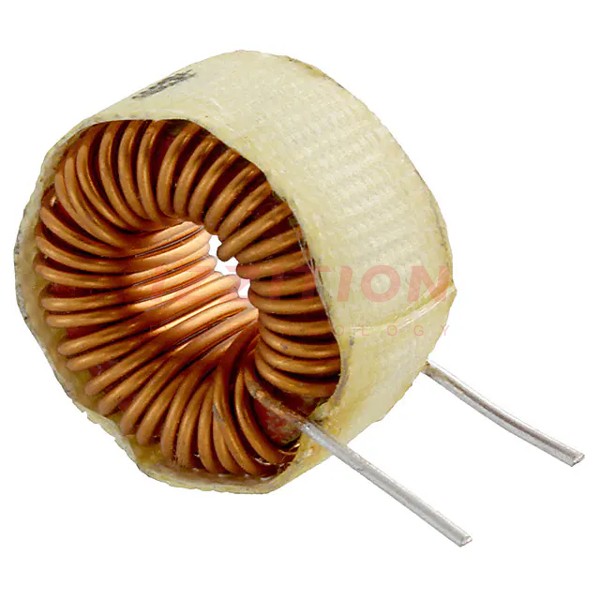

| Part Number | 2000-100-H-RC | 2000-100-V-RC | 2000-180-H-RC | 2000-150-H-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | - | - | - | - |
| Inductance | 10 µH | 10 µH | 18 µH | 15 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 6.6 A | 6.6 A | 4.5 A | 4.7 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 15mOhm Max | 15mOhm Max | 32mOhm Max | 29mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) | Radial, Horizontal (Open) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.680" Dia (17.27mm) | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | 0.680" Dia (17.27mm) | 0.680" Dia (17.27mm) |
| Height - Seated (Max) | 0.410" (10.41mm) | - | 0.410" (10.41mm) | 0.410" (10.41mm) |
