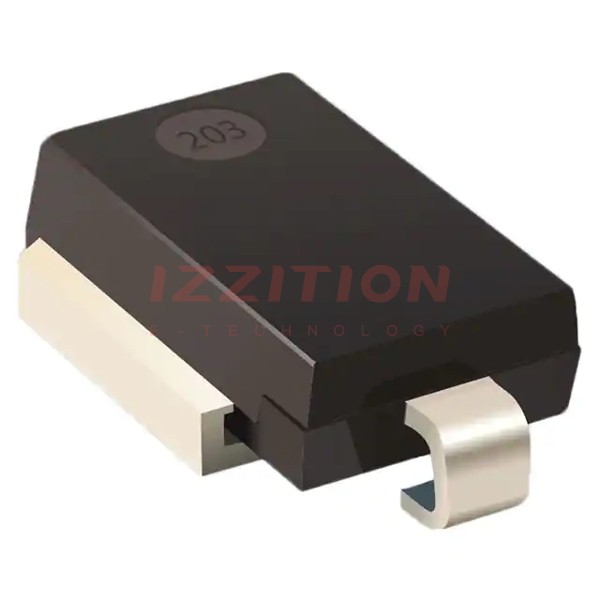

| Part Number | 15KPA066C-SD-Q | 15KPA016C-SD-Q | 15KPA026C-SD-Q | 15KPA036C-SD-Q |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 66V | 16V | 26V | 36V |
| Voltage - Breakdown (Min) | 66.4V | 16.35V | 26.48V | 36.69V |
| Voltage - Clamping (Max) @ Ipp | 96.9V | 23.9V | 40.5V | 55V |
| Current - Peak Pulse (10/1000µs) | 143.3A | 599A | 370.6A | 272.7A |
| Power - Peak Pulse | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) |
| Power Line Protection | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-218AB | DO-218AB | DO-218AB | DO-218AB |
| Supplier Device Package | DO-218 | DO-218 | DO-218 | DO-218 |
