Bourns Inc.-1210-2S-120 - TVS - Surge Protection Devices (SPDs) Product Specifications and Latest Quotes

Part Number	1210-2S-120	1250-2S-120	1210-3S-120	1210-4S-120	1210-1S-120
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Active
Type	Type 2, Type 4	Type 2, Type 4	Type 2, Type 4	Type 2, Type 4	Type 2, Type 4
Form	Module Only	Base + Module	Module Only	Module Only	Module Only
Number of Poles	2	2	3	4	1
Voltage - Continuous Operating (Max) (MCOV)	150VAC	150VAC	150VAC	150VAC	150VAC
Current - Discharge (Nom) (8/20µS)	20 kA	20 kA	20 kA	20 kA	20 kA
Current - Discharge (Max) (8/20µS)	100 kA	50 kA	100 kA	100 kA	100 kA
Current - Short Circuit Rating (SCRR)	100 kA	100 kA	100 kA	100 kA	100 kA
Voltage - Protection Rating (VPR)	600 V	700 V	600 V	600 V	600 V
Voltage - Protection Level (VP) (2416)	900 V	900 V	900 V	900 V	900 V
Operating Temperature	-50°C ~ 85°C	-50°C ~ 85°C	-50°C ~ 85°C	-50°C ~ 85°C	-50°C ~ 85°C
Features	Remote Signaling Contacts, Thermally Protected	Remote Signaling Contacts, Thermally Protected	Remote Signaling Contacts, Thermally Protected	Remote Signaling Contacts, Thermally Protected	Remote Signaling Contacts, Thermally Protected
Mounting Type	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Approval Agency	CE, CSA, UL	CE, CSA, UR	CE, CSA, UL	CE, CSA, UL	CE, CSA, UL

Type:	Type 2, Type 4
Form:	Module Only
Number of Poles:	2
Voltage - Continuous Operating (Max) (MCOV):	150VAC
Current - Discharge (Nom) (8/20µS):	20 kA
Current - Discharge (Max) (8/20µS):	100 kA
Current - Short Circuit Rating (SCRR):	100 kA
Voltage - Protection Rating (VPR):	600 V
Voltage - Protection Level (VP) (2416):	900 V
Operating Temperature:	-50°C ~ 85°C
Features:	Remote Signaling Contacts, Thermally Protected
Mounting Type:	DIN Rail
Approval Agency:	CE, CSA, UL

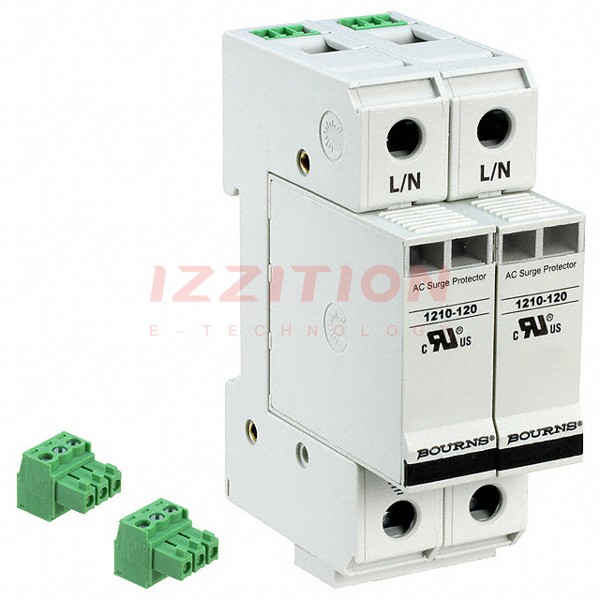

Bourns Inc. 1210-2S-120
