1120-271K-RC
  • Share:

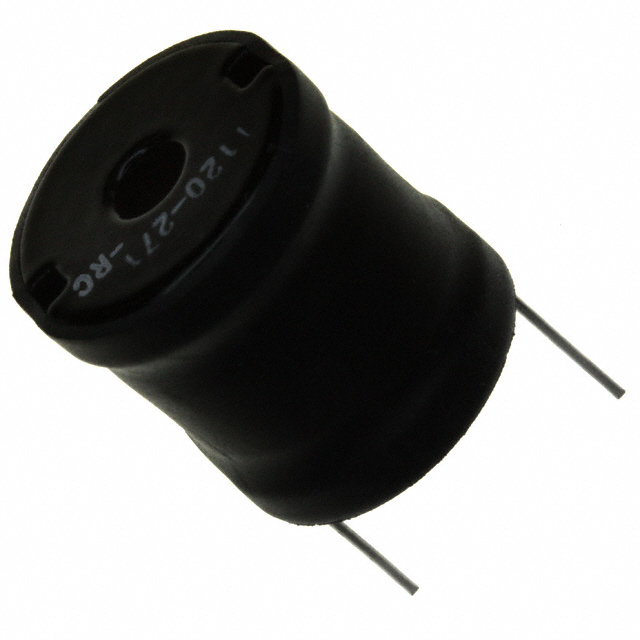

Bourns Inc. 1120-271K-RC

Manufacturer No:
1120-271K-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
1120-271K-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 270UH 2A 213 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:270 µH
Tolerance:±10%
Current Rating (Amps):2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):213mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.810" Dia (20.57mm)
Height - Seated (Max):0.840" (21.34mm)
0 Remaining View Similar

In Stock

$9.12
34

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1120-271K-RC 1120-471K-RC   1130-271K-RC   1110-271K-RC   1120-221K-RC   1120-270K-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Inductance 270 µH 470 µH 270 µH 270 µH 220 µH 27 µH
Tolerance ±10% ±10% ±10% ±10% ±10% ±10%
Current Rating (Amps) 2 A 1.6 A 4.5 A 1.6 A 2.8 A 5.5 A
Current - Saturation (Isat) - - - - - -
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
DC Resistance (DCR) 213mOhm Max 355mOhm Max 110mOhm Max 300mOhm Max 150mOhm Max 26mOhm Max
Q @ Freq - - - - - -
Frequency - Self Resonant - - - - - -
Ratings - - - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Inductance Frequency - Test 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz
Features - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial Radial Radial, Vertical Cylinder Radial
Supplier Device Package - - - - - -
Size / Dimension 0.810" Dia (20.57mm) 0.810" Dia (20.57mm) 1.100" Dia (27.94mm) 0.660" Dia (16.76mm) 0.810" Dia (20.57mm) 0.810" Dia (20.57mm)
Height - Seated (Max) 0.840" (21.34mm) 0.840" (21.34mm) 0.840" (21.34mm) 0.840" (21.34mm) 0.840" (21.34mm) 0.840" (21.34mm)
