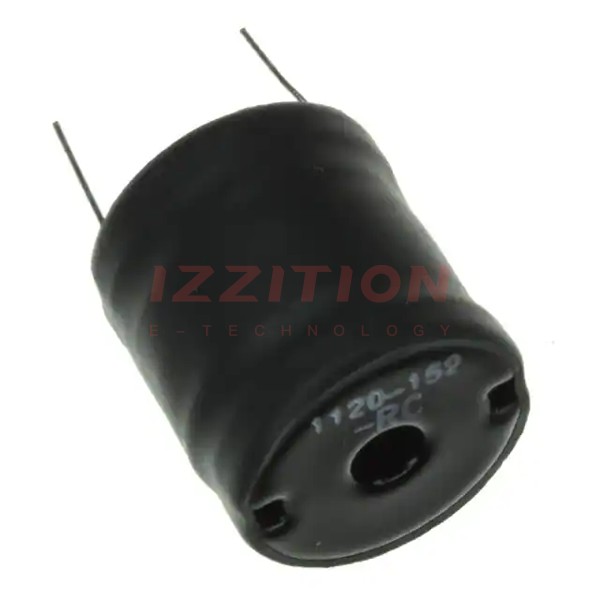

| Part Number | 1120-152K | 1120-182K | 1130-152K | 1120-102K | 1120-122K | 1120-150K | 1120-151K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 mH | 1.8 mH | 1.5 mH | 1 mH | 1.2 mH | 15 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 800 mA | 800 mA | 2 A | 1 A | 800 mA | 9 A | 4 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.26Ohm Max | 1.39Ohm Max | 518mOhm Max | 818mOhm Max | 1.14Ohm Max | 13mOhm Max | 98mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.810" Dia (20.57mm) | 0.810" Dia (20.57mm) | 1.100" Dia (27.94mm) | 0.810" Dia (20.57mm) | 0.810" Dia (20.57mm) | 0.810" Dia (20.57mm) | 0.810" Dia (20.57mm) |
| Height - Seated (Max) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) |
