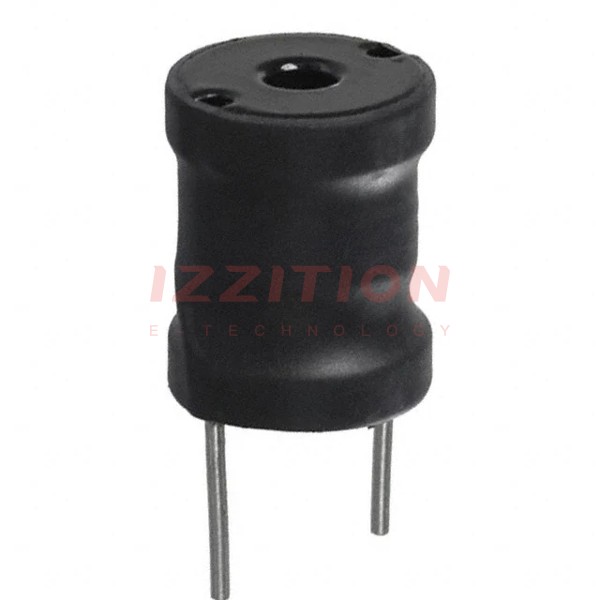

| Part Number | 1110-560K-RC | 1110-561K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 56 µH | 560 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 2.8 A | 800 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 69mOhm Max | 696mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) |
| Height - Seated (Max) | 0.840" (21.34mm) | 0.840" (21.34mm) |
