Please send RFQ , we will respond immediately.

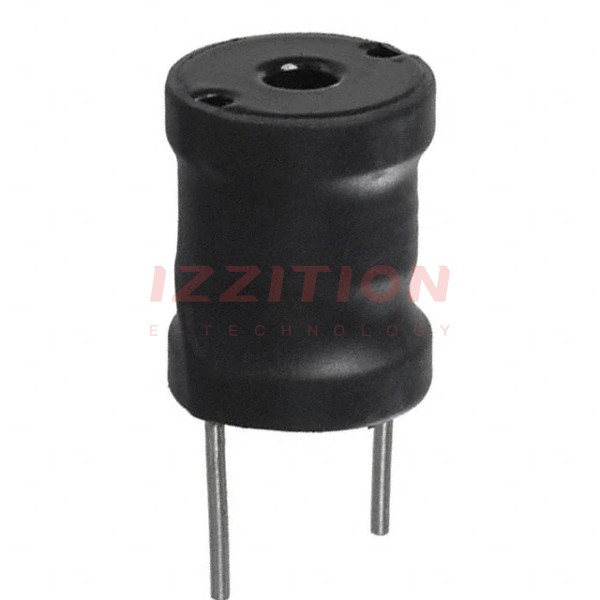

| Part Number | 1110-120K | 1110-150K | 1110-180K | 1110-220K | 1110-820K | 1110-121K | 1120-120K | 1110-100K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 15 µH | 18 µH | 22 µH | 82 µH | 120 µH | 12 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 9 A | 7.2 A | 7.2 A | 5.5 A | 2.8 A | 2 A | 11.4 A | 9 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 11mOhm Max | 15mOhm Max | 16mOhm Max | 20mOhm Max | 83mOhm Max | 127mOhm Max | 9mOhm Max | 10mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) | 0.660" Dia (16.76mm) | 0.810" Dia (20.57mm) | 0.660" Dia (16.76mm) |
| Height - Seated (Max) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) |
