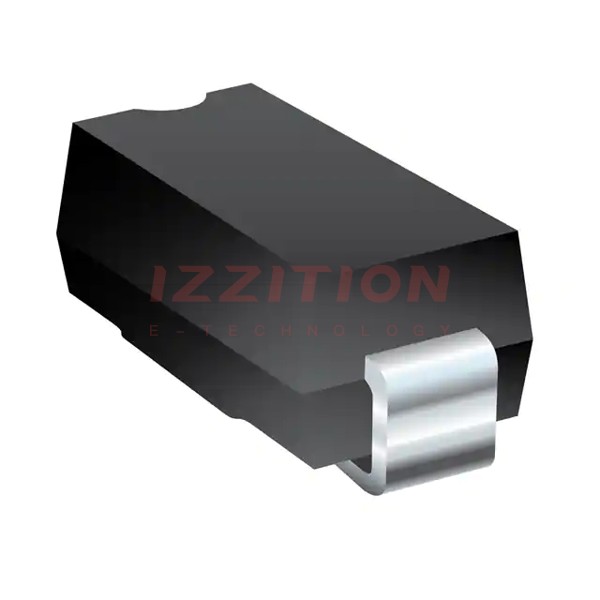

| Part Number | 1.5SMBJ24A-H | 1.5SMBJ54A-H | 1.5SMBJ64A-H | 1.5SMBJ28A-H | 1.5SMBJ26A-H | 1.5SMBJ24CA-H | 1.5SMBJ14A-H | 1.5SMBJ20A-H | 1.5SMBJ22A-H |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V | 54V | 64V | 28V | 26V | 24V | 14V | 20V | 22V |
| Voltage - Breakdown (Min) | 26.7V | 60V | 71.1V | 31.1V | 28.9V | 26.7V | 15.6V | 22.2V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 87.1V | 103V | 45.4V | 42.1V | 38.9V | 23.2V | 32.4V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 38.6A | 17.3A | 14.6A | 33.1A | 35.7A | 38.6A | 64.7A | 46.3A | 42.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
