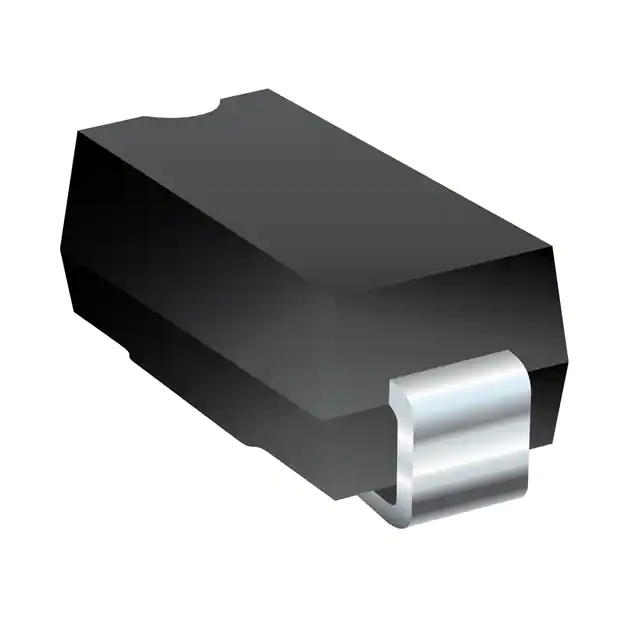

| Part Number | 1.5SMBJ12CA-H | 1.5SMBJ13CA-H | 1.5SMBJ18CA-H | 1.5SMBJ22CA-H | 1.5SMBJ17CA-H | 1.5SMBJ15CA-H | 1.5SMBJ14CA-H | 1.5SMBJ16CA-H | 1.5SMBJ12A-H |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 12V | 13V | 18V | 22V | 17V | 15V | 14V | 16V | 12V |
| Voltage - Breakdown (Min) | 13.3V | 14.4V | 20V | 24.4V | 18.9V | 16.7V | 15.6V | 17.8V | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 21.5V | 29.2V | 35.5V | 27.6V | 24.4V | 23.2V | 26V | 19.9V |
| Current - Peak Pulse (10/1000µs) | 75.4A | 69.8A | 51.4A | 42.3A | 54.4A | 61.5A | 64.7A | 57.7A | 75.4A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
