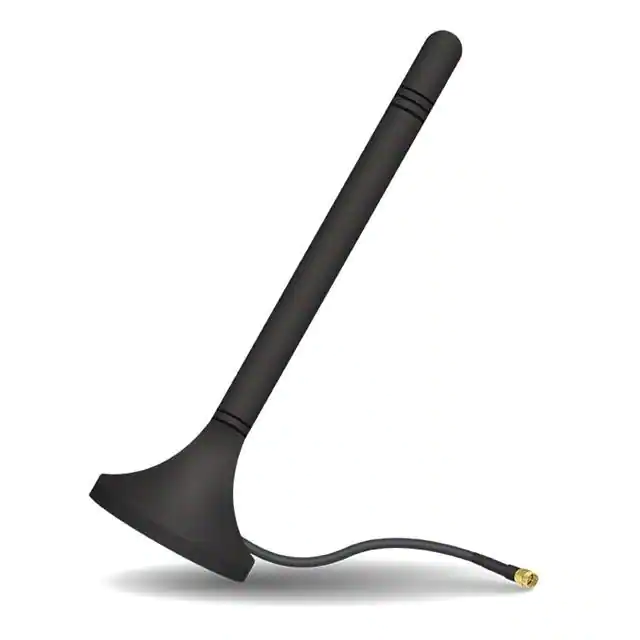

| Part Number | X9001248-4GMSMB3000R | X9001248-4GMSMB1000R |
|---|---|---|
| Manufacturer | KYOCERA AVX | Ethertronics/AVX |
| Product Status | Active | Active |
| RF Family/Standard | Cellular | 802.15.4, Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | Wide Band |
| Frequency (Center/Band) | 875MHz, 2.2GHz | 700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz |
| Frequency Range | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz |
| Antenna Type | Whip, Straight | Whip, Straight |
| Number of Bands | 2 | 6 |
| VSWR | - | - |
| Return Loss | -5.2dB, -5.8dB, -6dB | -5.2dB, -5.8dB, -6dB |
| Gain | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi |
| Power - Max | - | - |
| Features | Cable - 3m | - |
| Termination | SMA Male | SMA Male |
| Ingress Protection | IP65 | IP65 |
| Mounting Type | Magnetic | Magnetic |
| Height (Max) | 4.409" (112.00mm) | 4.409" (112.00mm) |
| Applications | 2G, 3G, 4G, Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox | LTE, LoRa, Sigfox |
