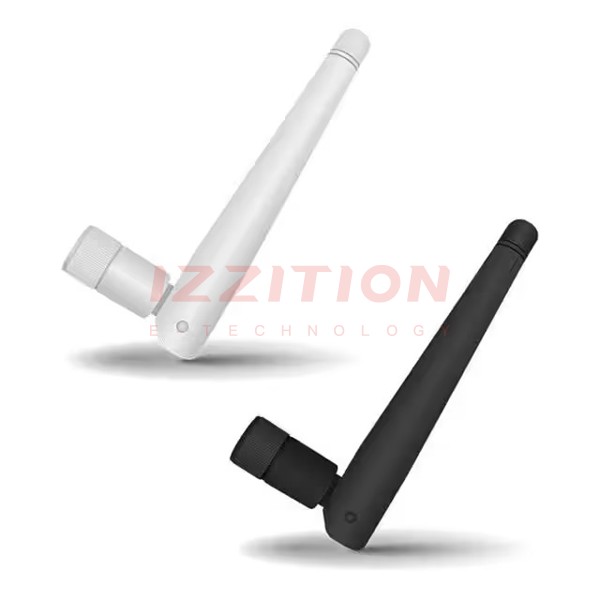

| Part Number | X9001091-W3DRMW | X9001091-W3DSMW | X9001091-W3DRMB |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | Ethertronics/AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4425GHz, 5.5GHz | 2.4425GHz, 5.5GHz | 2.4425GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Whip, Tilt | Whip, Tilt | Whip, Tilt |
| Number of Bands | 2 | 2 | 2 |
| VSWR | - | - | - |
| Return Loss | -11dB, -14dB | -14dB, -11dB | -11dB, -14dB |
| Gain | 1.8dBi, 4dBi | 1.8dBi, 4dBi | 1.8dBi, 4dBi |
| Power - Max | - | - | - |
| Features | - | - | - |
| Termination | RP-SMA Male | SMA Male | RP-SMA Male |
| Ingress Protection | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount |
| Height (Max) | 3.307" (84.00mm) | 3.307" (84.00mm) | 3.307" (84.00mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
