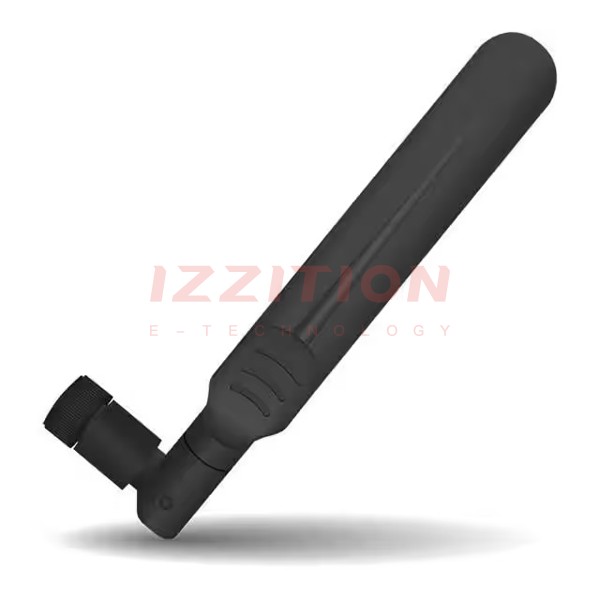

| Part Number | X9000294-W3DSMB | X9000294-W3DRMB |
|---|---|---|
| Manufacturer | KYOCERA AVX | Ethertronics/AVX |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4425GHz, 5.5GHz | 2.4425GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Whip, Tilt | Whip, Tilt |
| Number of Bands | 2 | 2 |
| VSWR | - | - |
| Return Loss | -9dB, -12dB | -12dB, -9dB |
| Gain | 3.2dBi, 4.5dBi | 3.2dBi, 4.5dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | RP-SMA Male | RP-SMA Male |
| Ingress Protection | - | - |
| Mounting Type | Connector Mount | Connector Mount |
| Height (Max) | 6.201" (157.50mm) | 6.201" (157.50mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
