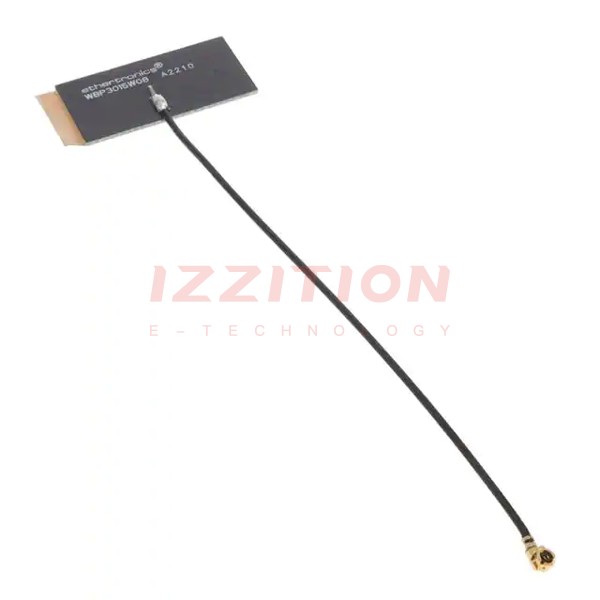

| Part Number | WBP3015W08-H100D3B0A | WBP3015W08-U100D3B0A | WCP3015W08-H100D3B0A | WAP3015W08-H100D3B0A |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.44GHz, 5.5GHz | 2.44GHz, 5.5GHz | 2.44GHz, 5.5GHz | 2.44GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 | 2 | 2 |
| VSWR | - | - | - | - |
| Return Loss | -8.4dB, 8.7dB | -8.4dB, 8.7dB | -8.4dB, 8.7dB | -8.4dB, 8.7dB |
| Gain | 3dBi, 6.7dBi | 3dBi, 6.7dBi | 3dBi, 6.7dBi | 3dBi, 6.7dBi |
| Power - Max | - | - | - | - |
| Features | Cable - 100mm | Cable - 100mm | Cable - 100mm | Cable - 100mm |
| Termination | MHF4 | U.FL | MHF4 | MHF4 |
| Ingress Protection | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
| Applications | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
