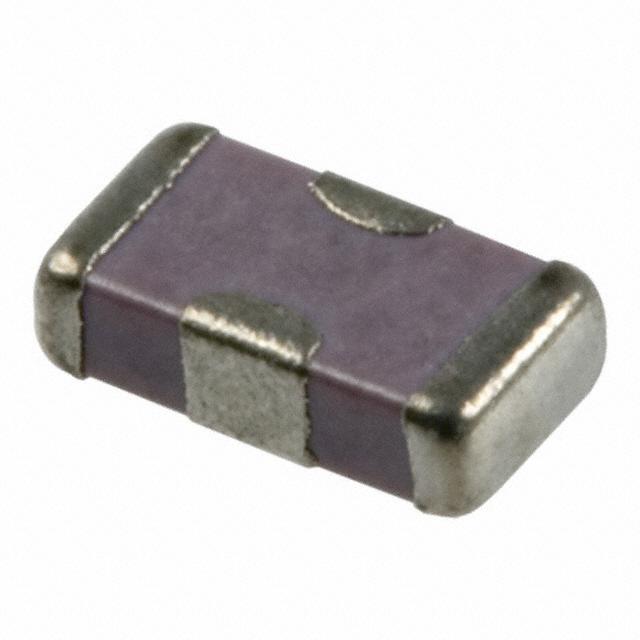

| Part Number | W3H15C4738AT1F | W2H15C4738AT1F |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Active |
| Capacitance | 0.047 µF | 0.047 µF |
| Tolerance | -20%, +50% | -20%, +50% |
| Voltage - Rated | 50V | 50V |
| Current | 5 A | 2 A |
| DC Resistance (DCR) (Max) | 150mOhm | 150mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | - |
| Temperature Coefficient | X7R | X7R |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0612 (1632 Metric) | 0805 (2012 Metric), 4 PC Pad |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) |
| Height (Max) | 0.048" (1.22mm) | 0.045" (1.14mm) |
| Thread Size | - | - |
