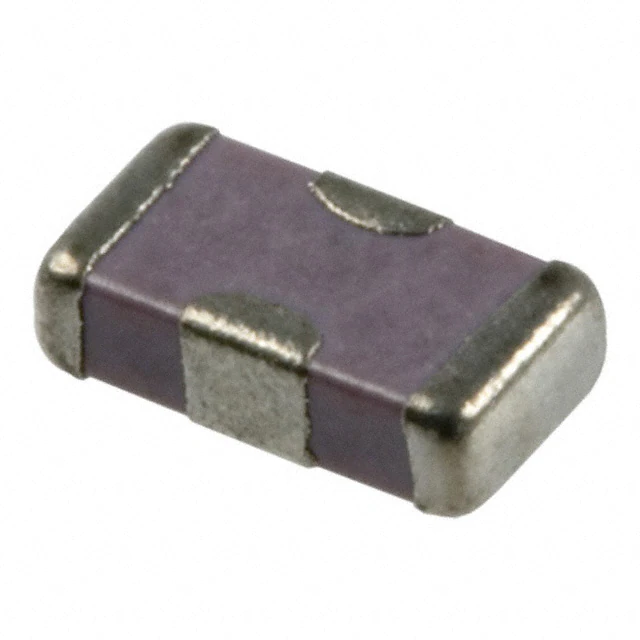

| Part Number | W3F11A2208AT3A | W3F11A2218AT3A | W3F11A2208AT1A |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 22 pF | 220 pF | 22 pF |
| Tolerance | -20%, +50% | -20%, +50% | -20%, +50% |
| Voltage - Rated | 100V | 100V | 100V |
| Current | 300 mA | 300 mA | 300 mA |
| DC Resistance (DCR) (Max) | 600mOhm | 600mOhm | 600mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | - | - |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), 4 PC Pad | 1206 (3216 Metric), 4 PC Pad | 1206 (3216 Metric), 4 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Thread Size | - | - | - |
