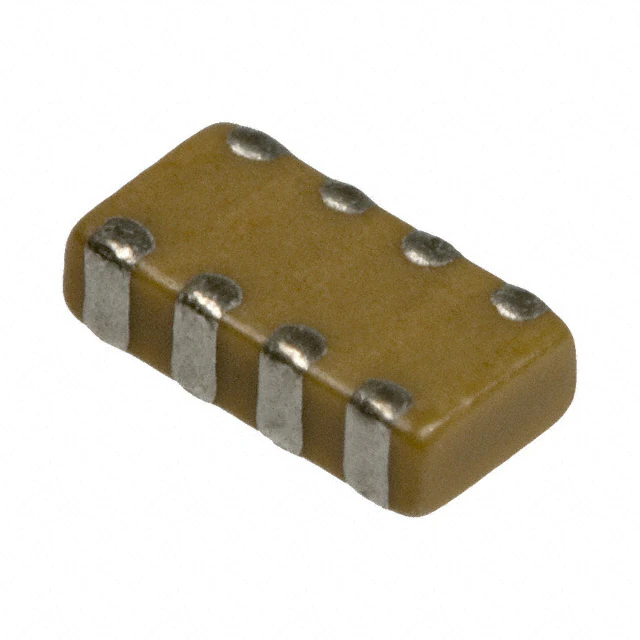

| Part Number | W3A45C221KAT2A | W3A45C222KAT2A | W3A4YC221KAT2A | W3A4ZC221KAT2A | W3A41C221KAT2A | W3A43C221KAT2A | W3A45A221KAT2A |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 220pF | 2200pF | 220pF | 220pF | 220pF | 220pF | 220pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50 V | 50 V | 16 V | 10 V | 100 V | 25 V | 50 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | C0G, NP0 |
| Ratings | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) |
