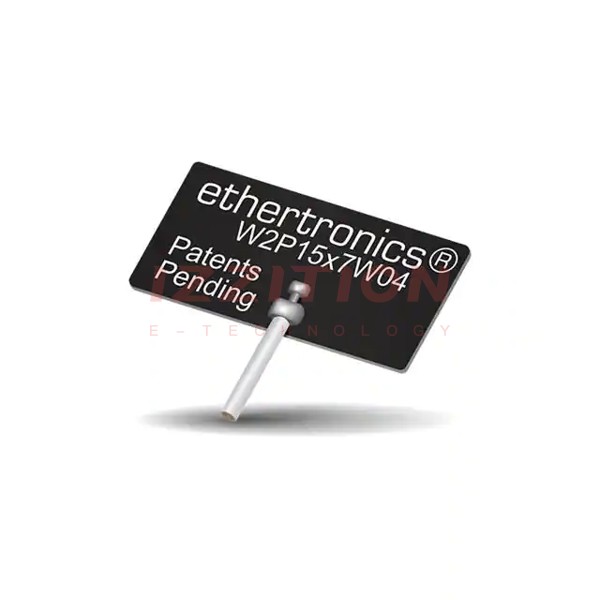

| Part Number | W2P15X7W04-U050D3B0A | W2P15X7W04-U150D3B0A | W2P15X7W04-U050U3B0A |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | Ethertronics/AVX |
| Product Status | Active | Active | Active |
| RF Family/Standard | WiFi | WiFi | WiFi |
| Frequency Group | SHF (f > 4GHz) | SHF (f > 4GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 5.5GHz, 6.525GHz | 5.5GHz, 6.525GHz | 5.5GHz, 6.525GHz |
| Frequency Range | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 | 2 |
| VSWR | - | - | - |
| Return Loss | -7.3dB, -9dB | -7.3dB, -9dB | -9dB, -7.3dB |
| Gain | 4.3dBi, 3.9dBi | 4.3dBi, 3.9dBi | 4.3dBi, 3.9dBi |
| Power - Max | - | - | - |
| Features | Cable - 50mm | Cable - 150mm | Cable - 50mm |
| Termination | U.FL | U.FL | U.FL |
| Ingress Protection | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Applications | Wi-Fi | Wi-Fi | Wi-Fi |
