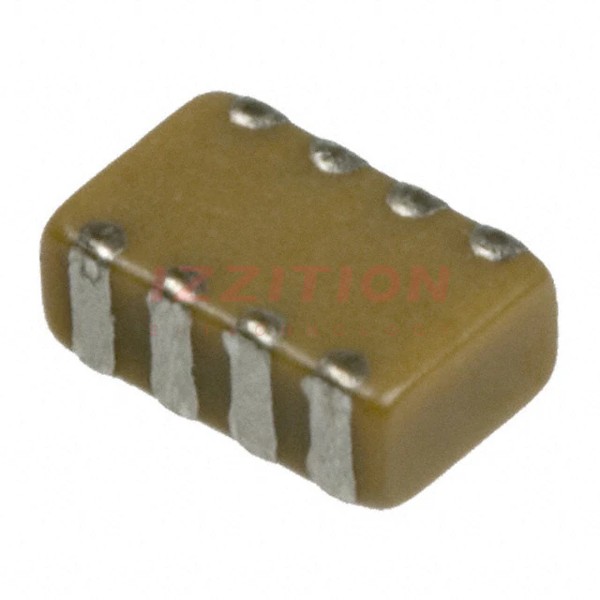

| Part Number | W2L1ZC473KAT1S | W2L13C473KAT1S | W2L16C473KAT1S | W2L1YC473KAT1S | W2L1ZC473KAT1A |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 10V | 25V | 6.3V | 16V | 10V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) |
| Ratings | - | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
