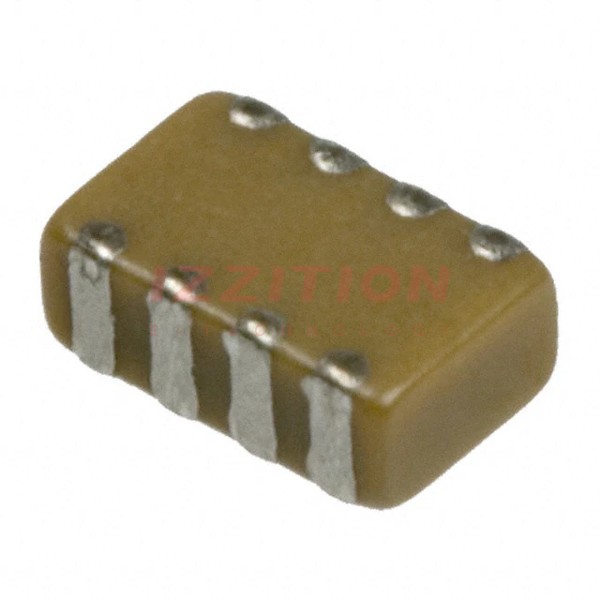

| Part Number | W2L16C104MAT1S | W2L1ZC104MAT1S | W3L16C104MAT1S | W2L14C104MAT1S | W2L16C104KAT1S | W2L16C104MAT1A |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±10% | ±20% |
| Voltage - Rated | 6.3V | 10V | 6.3V | 4V | 6.3V | 6.3V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) | Low ESL (Multi-Terminal) |
| Ratings | - | - | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0612 (1632 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | 0.050" L x 0.080" W (1.27mm x 2.03mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
