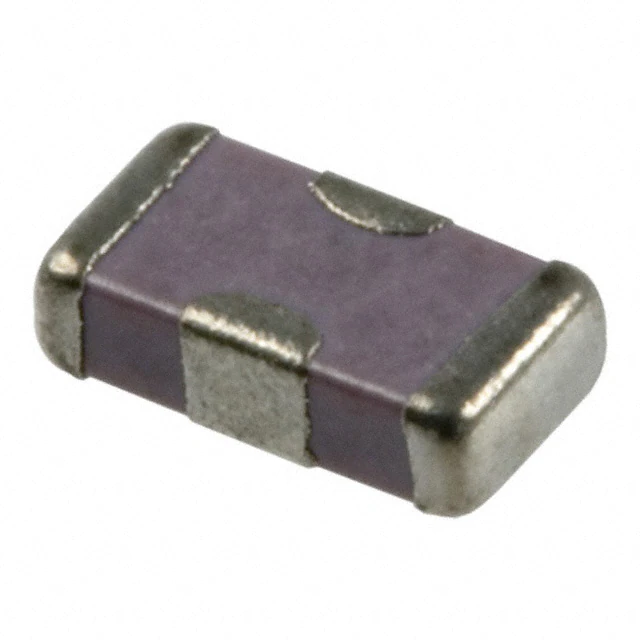

| Part Number | W2F15C1028AT1A | W2H15C1028AT1A | W2F15C1028AT1F | W2F15C1038AT1A | W3F15C1028AT1A |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 10000 pF | 1000 pF |
| Tolerance | -20%, +50% | -20%, +50% | -20%, +50% | -20%, +50% | -20%, +50% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V |
| Current | 300 mA | 1 A | 300 mA | 300 mA | 300 mA |
| DC Resistance (DCR) (Max) | 600mOhm | 150mOhm | 600mOhm | 600mOhm | 600mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | - | - | - | - |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), 4 PC Pad | 0805 (2012 Metric), 4 PC Pad | 0805 (2012 Metric), 4 PC Pad | 0805 (2012 Metric), 4 PC Pad | 1206 (3216 Metric), 4 PC Pad |
| Size / Dimension | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.050" (1.27mm) |
| Thread Size | - | - | - | - | - |
