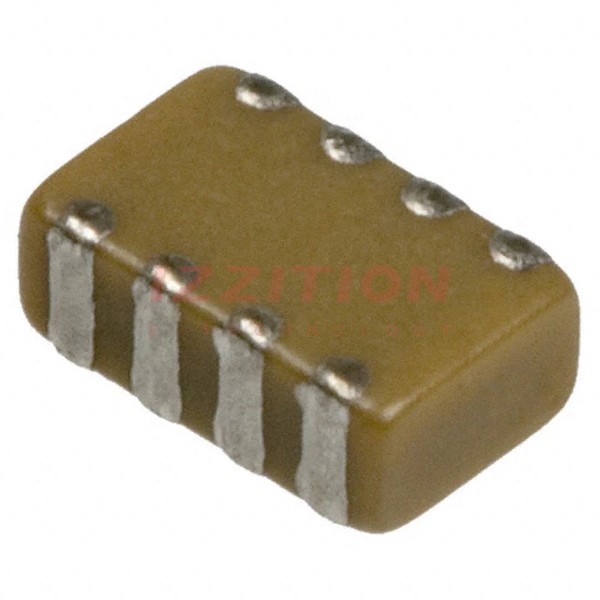

| Part Number | W2A4YC102KAT2A | W2A4YC104KAT2A | W2A4YC103KAT2A | W2A4YC102MAT2A | W2A4YC152KAT2A | W2A41C102KAT2A | W2A43C102KAT2A | W2A45C102KAT2A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1000pF | 0.1µF | 10000pF | 1000pF | 1500pF | 1000pF | 1000pF | 1000pF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 100 V | 25 V | 50 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Supplier Device Package | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
