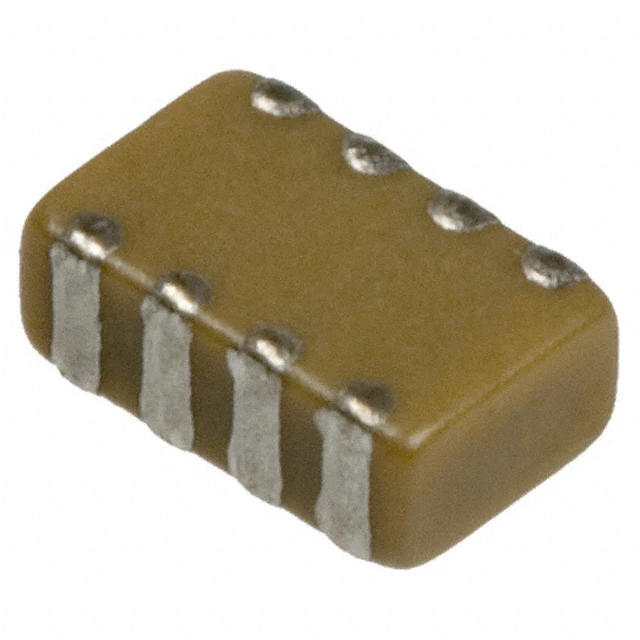

| Part Number | W2A41A100KAT2A | W2A41A101KAT2A | W2A41A120KAT2A | W2A41A150KAT2A | W2A41A180KAT2A | W2A43A100KAT2A | W2A45A100KAT2A | W2A4YA100KAT2A | W2A41A100JAT2A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10pF | 100pF | 12pF | 15pF | 18pF | 10pF | 10pF | 10pF | 10pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V | 100 V | 25 V | 50 V | 16 V | 100 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Ratings | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Supplier Device Package | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.083" L x 0.051" W (2.10mm x 1.30mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
