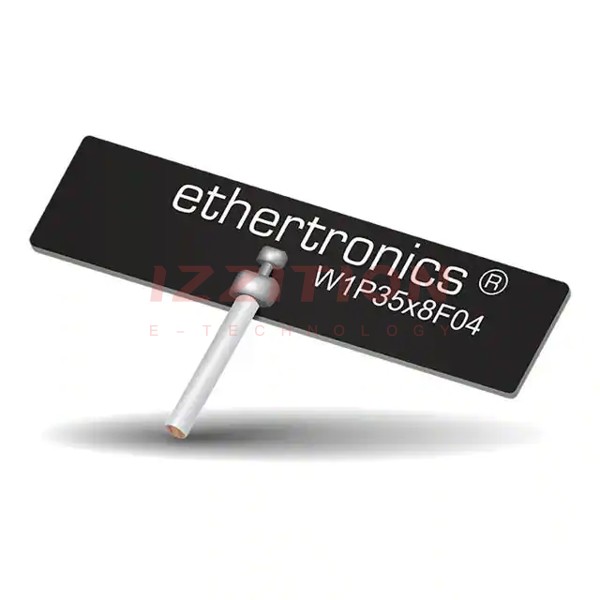

| Part Number | W1P35X8W04-U050D3B0A | W1P35X8W04-U150D3B0A |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.44GHz | 2.44GHz |
| Frequency Range | 2.4GHz ~ 2.48GHz | 2.4GHz ~ 2.48GHz |
| Antenna Type | PCB Trace | PCB Trace |
| Number of Bands | 1 | 1 |
| VSWR | - | - |
| Return Loss | -15dB | -15dB |
| Gain | 2.8dBi | 2.8dBi |
| Power - Max | - | - |
| Features | Cable - 50mm | Cable - 150mm |
| Termination | U.FL | U.FL |
| Ingress Protection | - | - |
| Mounting Type | Adhesive | Adhesive |
| Height (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
