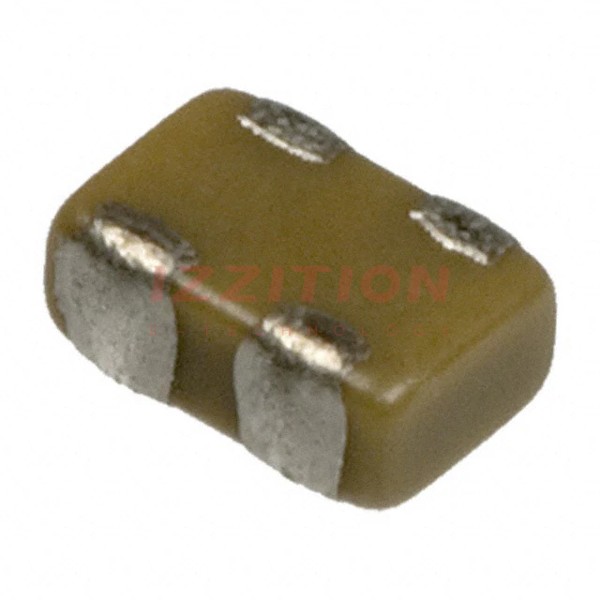

| Part Number | W1A2ZD104MAT2A | W2A2ZD104MAT2A | W1A26D104MAT2A | W1A2ZD104KAT2A |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1µF | 0.1µF | 0.1µF | 0.1µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 10 V | 10 V | 6 V | 10 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 2 | 2 | 2 | 2 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X5R | X5R | X5R | X5R |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0504 (1410 Metric) | 0508 (1220 Metric) | 0504 (1410 Metric) | 0504 (1410 Metric) |
| Supplier Device Package | 0405 (1012 Metric) | 0508 (1220 Metric) | 0405 (1012 Metric) | 0405 (1012 Metric) |
| Size / Dimension | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) |
| Height - Seated (Max) | 0.026" (0.66mm) | 0.037" (0.95mm) | 0.026" (0.66mm) | 0.026" (0.66mm) |
