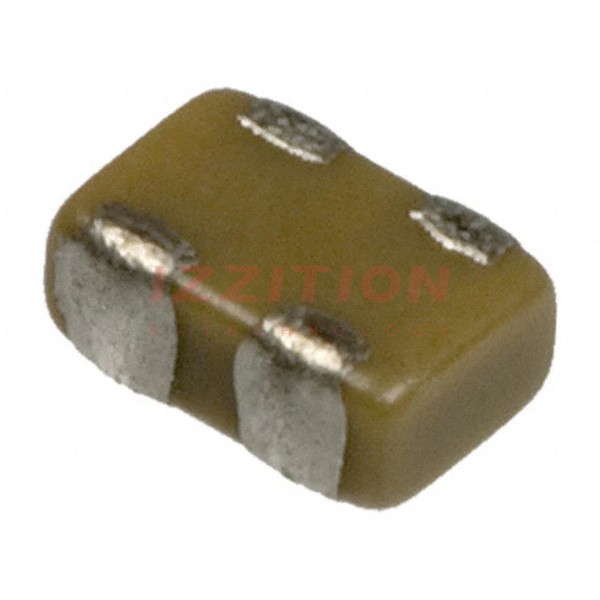

| Part Number | W1A2ZC471MAT2A | W1A23C471MAT2A | W1A25C471MAT2A | W1A2YC471MAT2A |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 470pF | 470pF | 470pF | 470pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 25 V | 50 V | 16 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 2 | 2 | 2 | 2 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0504 (1410 Metric) | 0504 (1410 Metric) | 0504 (1410 Metric) | 0504 (1410 Metric) |
| Supplier Device Package | 0405 (1012 Metric) | 0405 (1012 Metric) | 0405 (1012 Metric) | 0405 (1012 Metric) |
| Size / Dimension | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.054" L x 0.039" W (1.37mm x 1.00mm) |
| Height - Seated (Max) | 0.026" (0.66mm) | 0.026" (0.66mm) | 0.026" (0.66mm) | 0.026" (0.66mm) |
