Please send RFQ , we will respond immediately.

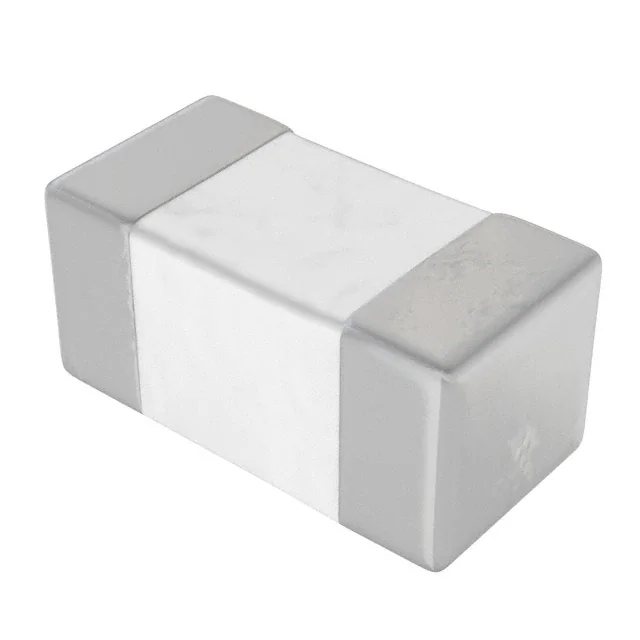

| Part Number | UQCL2A240JAT2A\500 | UQCL2A270JAT2A\500 | UQCL2A200JAT2A\500 | UQCL2A220JAT2A\500 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 24 pF | 27 pF | 20 pF | 22 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 200V | 200V | 200V | 200V |
| Temperature Coefficient | A | A | A | A |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss |
| Ratings | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
