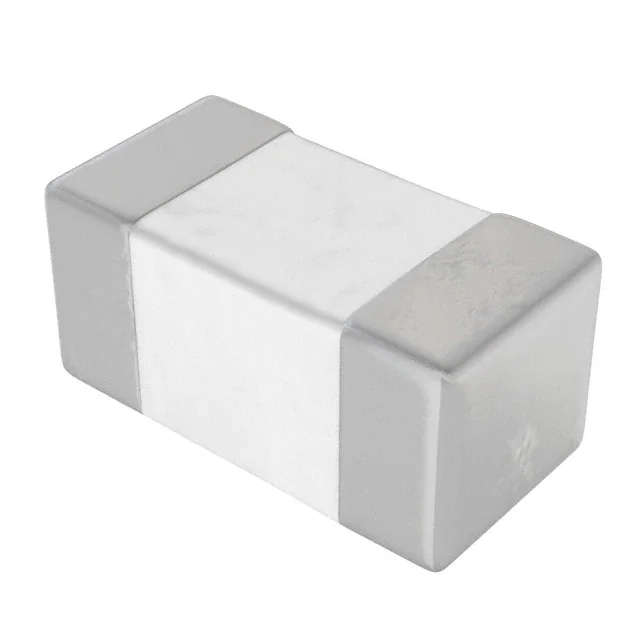

| Part Number | UQCL2A1R1BAT2A\500 | UQCL2A1R8BAT2A\500 | UQCL2A1R2BAT2A\500 | UQCL2A1R5BAT2A\500 | UQCL2A0R1BAT2A\500 | UQCL2A1R0BAT2A\500 |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1.1 pF | 1.8 pF | 1.2 pF | 1.5 pF | 0.1 pF | 1 pF |
| Tolerance | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF |
| Voltage - Rated | 200V | 200V | 200V | 200V | 200V | 200V |
| Temperature Coefficient | A | A | A | A | A | A |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss |
| Ratings | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
