Please send RFQ , we will respond immediately.

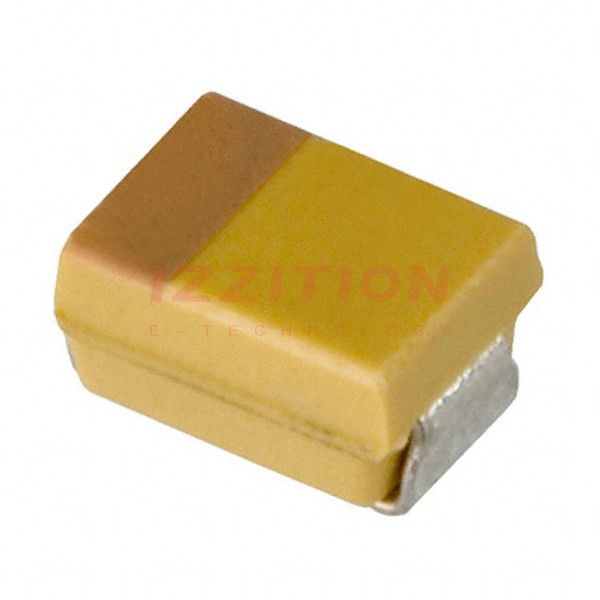

| Part Number | TPSR106K006R1000 | TPSR106M006R1000 | TPSR106K006R1500 | TPSR106K006R3000 | TPST106K006R1000 |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1Ohm | 1Ohm | 1.5Ohm | 3Ohm | 1Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 1411 (3528 Metric), 1210 |
| Size / Dimension | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.055" (1.40mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | R | R | R | R | T |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
