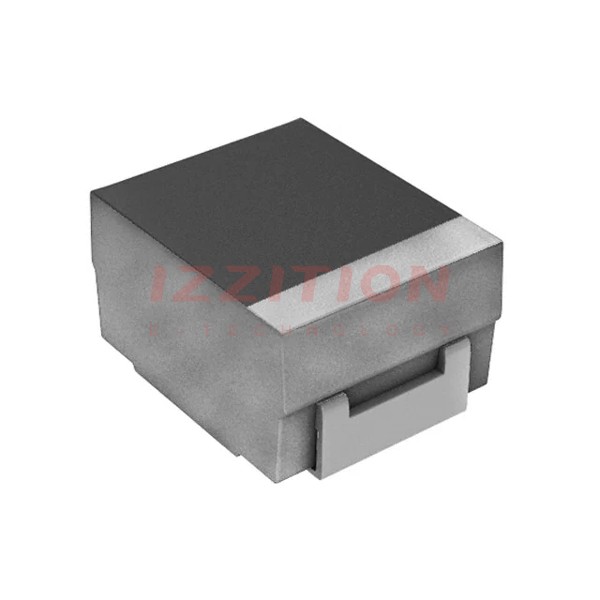

| Part Number | THJB685M016RJN | THJA685M016RJN | THJB685K016RJN |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±20% | ±20% | ±10% |
| Voltage - Rated | 16 V | 16 V | 16 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.5Ohm @ 100kHz | 3.5Ohm @ 100kHz | 2.5Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric), 1210 | 1206 (3216 Metric) | 1411 (3528 Metric), 1210 |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.071" (1.80mm) | 0.083" (2.10mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | B | A | B |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
