Please send RFQ , we will respond immediately.

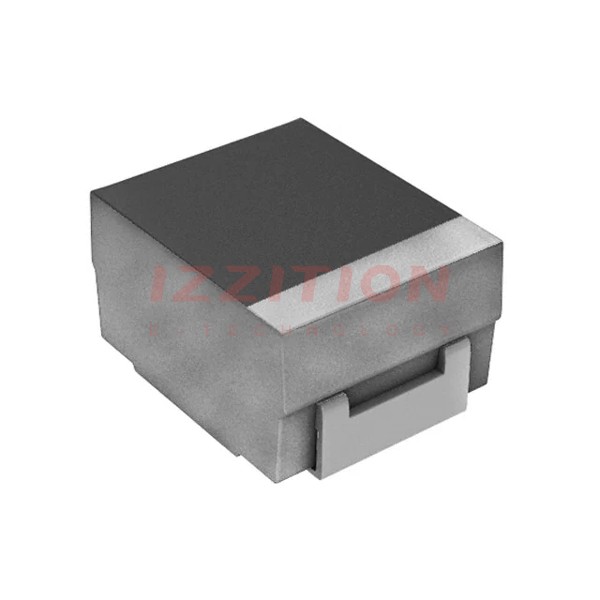

| Part Number | THJB226K010AJN | THJB226M010AJN | THJB226K010RJN |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF |
| Tolerance | ±10% | ±20% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.4Ohm @ 100kHz | 2.4Ohm @ 100kHz | 2.4Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric), 1210 | 1411 (3528 Metric), 1210 | 1411 (3528 Metric), 1210 |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | B | B | B |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
