Please send RFQ , we will respond immediately.

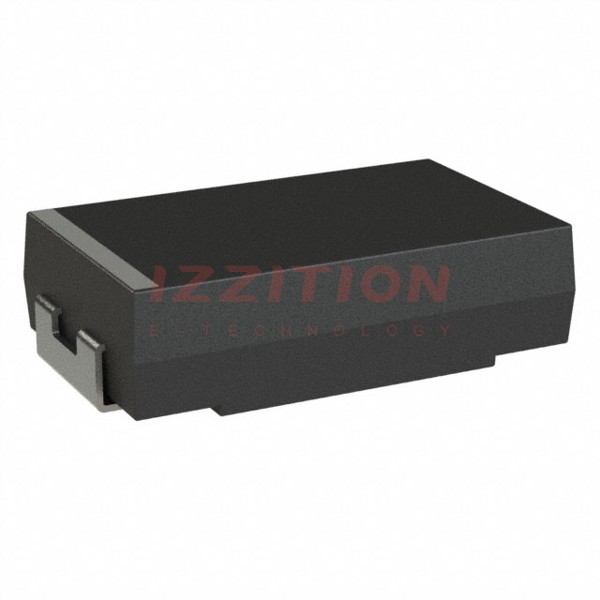

| Part Number | TCBY227M004CRSZ0H23 | TCBY227M004CRSZ0H24 | TCBD227M004CRSZ0H23 | TCBY227M004CRSZ0723 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V | 4 V | 4 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 40mOhm @ 100kHz | 40mOhm @ 100kHz | 40mOhm @ 100kHz | 40mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.122" (3.10mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | Y | Y | D | Y |
| Ratings | COTS | COTS | COTS | COTS |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
