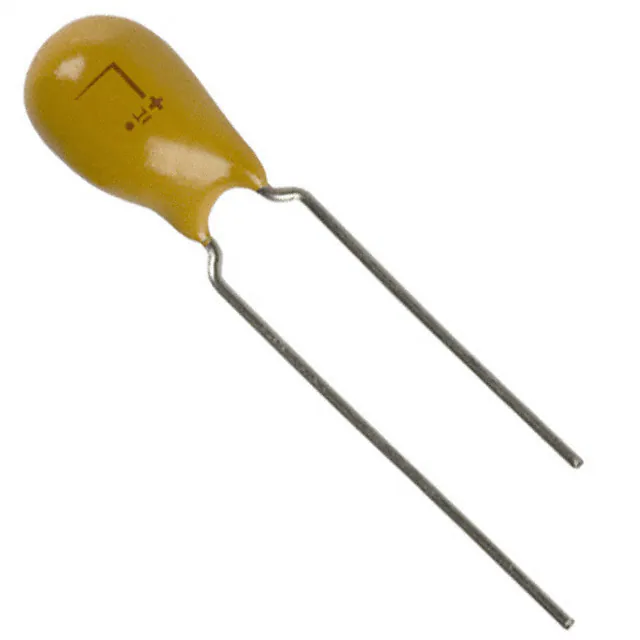

| Part Number | TAP686M006CCS | TAP686M016CCS | TAP686M006CRS | TAP686M006DCS | TAP686M006SCS | TAP685M006CCS | TAP686K006CCS |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 68 µF | 68 µF | 68 µF | 68 µF | 68 µF | 6.8 µF | 68 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 6.3 V | 16 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.8Ohm | 1Ohm | 1.8Ohm @ 100kHz | 1.8Ohm | 1.8Ohm | 8Ohm | 1.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.256" Dia (6.50mm) | 0.354" Dia (9.00mm) | 0.256" Dia (6.50mm) | 0.256" Dia (6.50mm) | 0.256" Dia (6.50mm) | 0.177" Dia (4.50mm) | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.551" (14.00mm) | 0.453" (11.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.335" (8.50mm) | 0.453" (11.50mm) |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Manufacturer Size Code | G | L | G | G | G | A | G |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
